A preamplifier with streamer/DAC, touchscreen display, and outstanding audio performance. An undisputed champion in terms of value for money.

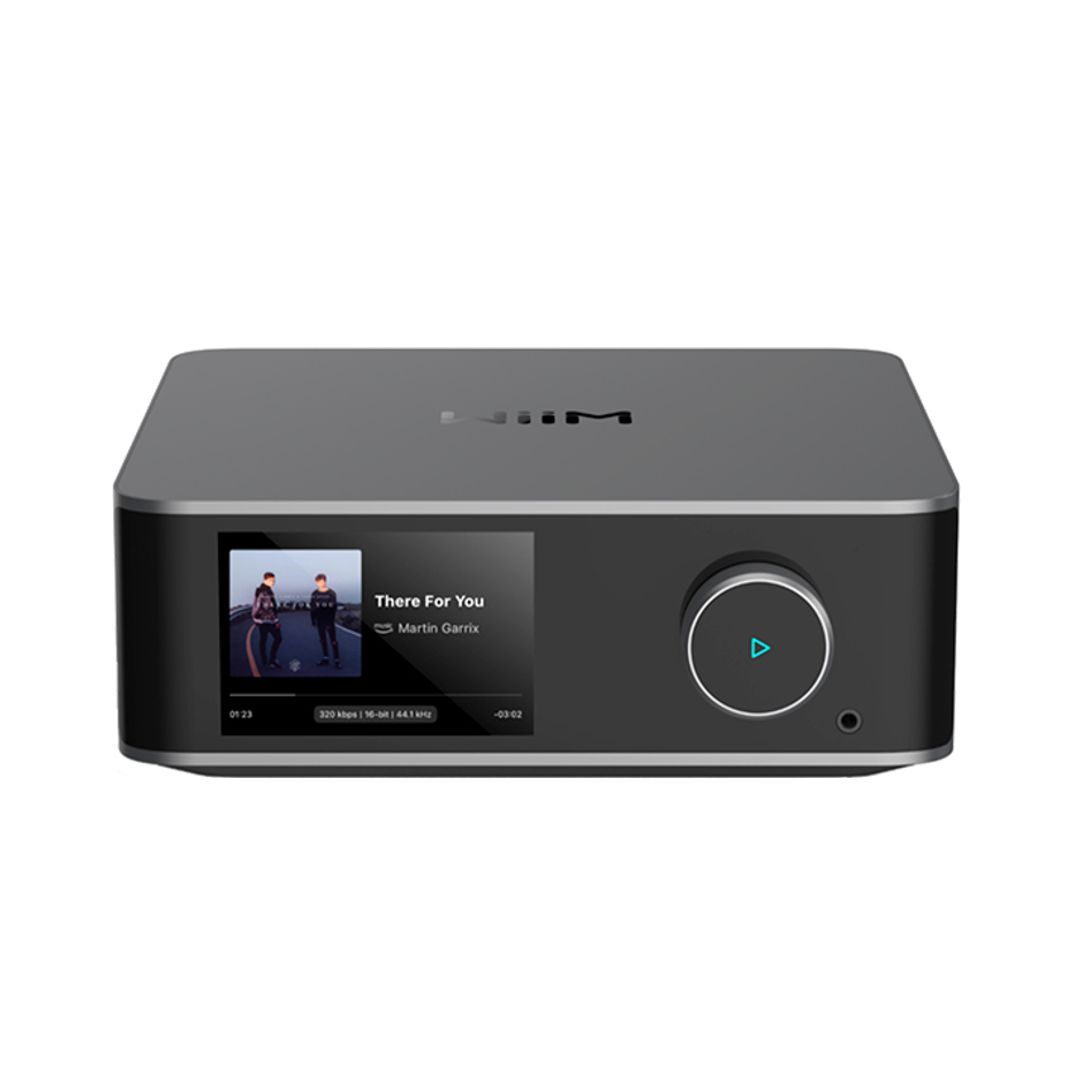

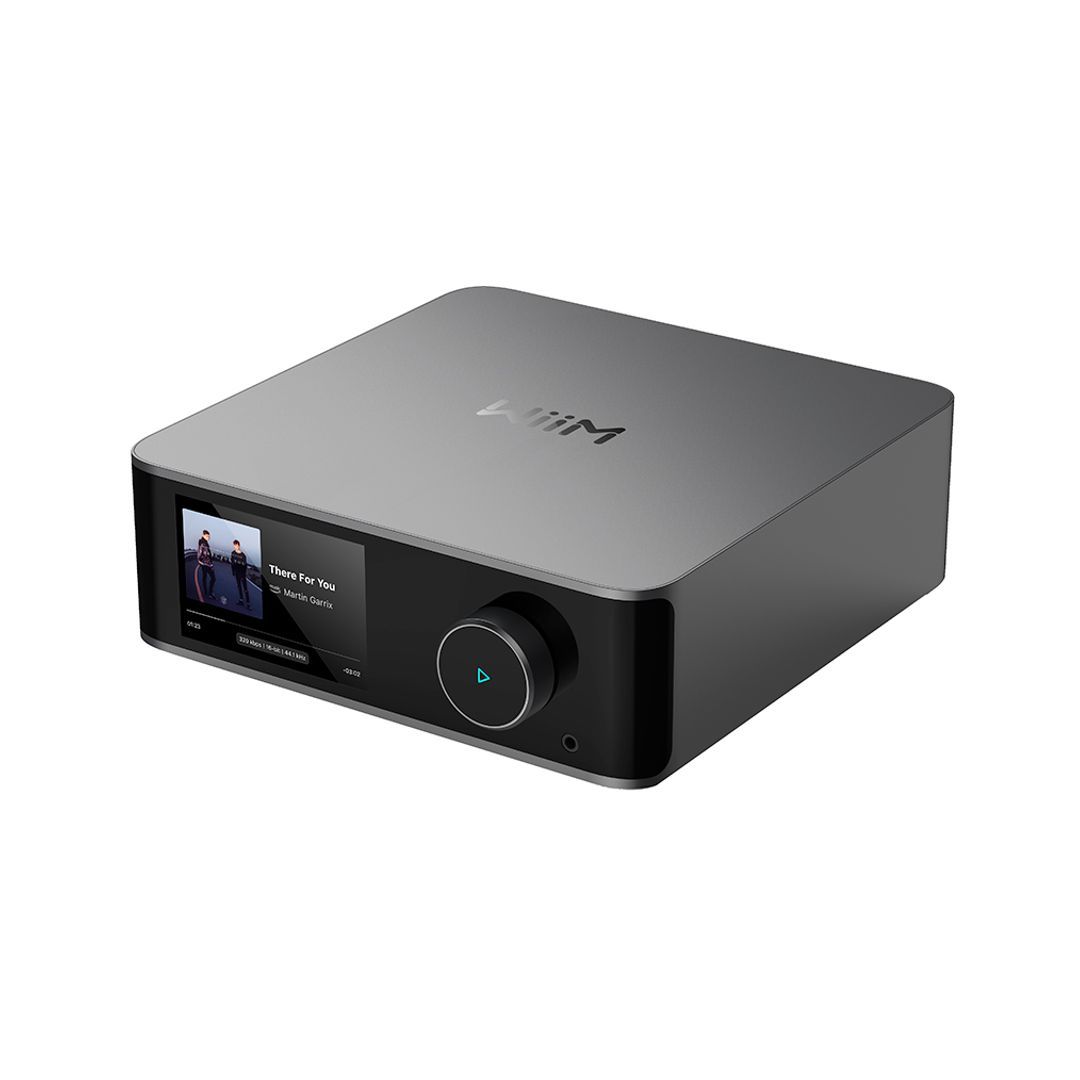

WiiM Ultra is an audio preamplifier with streaming capabilities and a highly performant built-in DAC. Compared to the Pro and Pro Plus, it stands out first for its aluminum chassis (similar to the Amp), giving it a solid and premium feel, and for its 3.5” OLED touchscreen displaying playback info, inputs, and system data.

There are many innovations: the top-tier SABRE ESS9038 DAC, Bluetooth 5.3 (with retransmission to devices like headphones), Wi-Fi 6E, HDMI ARC input with Dolby Digital, Dolby Digital Plus and Atmos support, MM phono input, and USB for storage devices.

Connectivity is extensive: RCA line input, optical input, RCA output, subwoofer pre-out with bass management, optical/coaxial outputs, and a 3.5mm trigger-out. On the front panel, a headphone output driven by a high-quality dedicated TPA6120A2 amplifier.

Exclusive to Ultra is an automatic room correction system, alongside the app-based EQ. It supports decoding up to 32-bit/384kHz and integrates seamlessly with major streaming services: Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Roon, and Squeezelite.

The internal power supply is linear, maximizing performance.

About WiiM

WiiM, owned by Linkplay, was founded in 2014 by a team of tech entrepreneurs from companies like Google, Broadcom, InterVideo, and Harman. Their mission is to develop advanced wireless, software, hardware, and voice technologies across multiple markets. Linkplay works with leading brands including Harman, JBL, Yamaha, Marshall, Edifier, Audio Pro, and more.

Top-Level Audio Experience

WiiM Ultra is not just another audio device—it’s a meticulously engineered solution delivering a next-level listening experience. The 3.5” color touchscreen and classic control knob make navigation intuitive, while the rich I/O ensures precise, high-resolution sound.

Limitless Connectivity

From turntables to TVs, headphones to active speakers, WiiM Ultra adapts to any setup. It delivers music, podcasts, and audiobooks with clarity, depth, and detail—no matter the source.

Advanced Features

Equipped with the ES9038 Q2M SABRE DAC (32-bit/384kHz), WiiM Ultra reproduces every note with precision. Wi-Fi 6E and Bluetooth 5.3 ensure high-quality streaming, while the aluminum chassis and touchscreen add a refined aesthetic.

Equalizer

Sound customization is a key feature. You can set different EQ profiles for each input: HDMI, optical, RCA, phono, Bluetooth, or network. Includes 24 presets, a 10-band graphic EQ, and a 10-band parametric EQ for precise tuning.

Key Features

• Premium SABRE ES9038 Q2M DAC (32-bit/384kHz)
• Dedicated high-fidelity headphone amp (TPA6120A2)
• Wi-Fi 6E and Bluetooth 5.3 with dual antenna
• Aluminum chassis with 3.5” touchscreen
• Room correction with acoustic measurement (speakers + subwoofer)
• High-resolution streaming with bit-perfect digital or RCA analog output (SNR >120dB, THD+N <0.00018%)
• Integrated streaming: Spotify Connect, TIDAL Connect, Chromecast Audio, Alexa, DLNA, Roon, Squeezelite
• Playback up to 24-bit/192kHz via USB, SPDIF, Coax, RCA, and headphone output

Technical Specifications

• DAC: ESS9038E2Q
• Resolution: up to 32-bit/384kHz
• SNR: 121dB
• THD: 0.00018%
• Output voltage: 2.1 Vrms
• CPU: Quad-core A53
• RAM: 512MB
• Flash: 512MB
• Linearity: +/- 0.05 dB

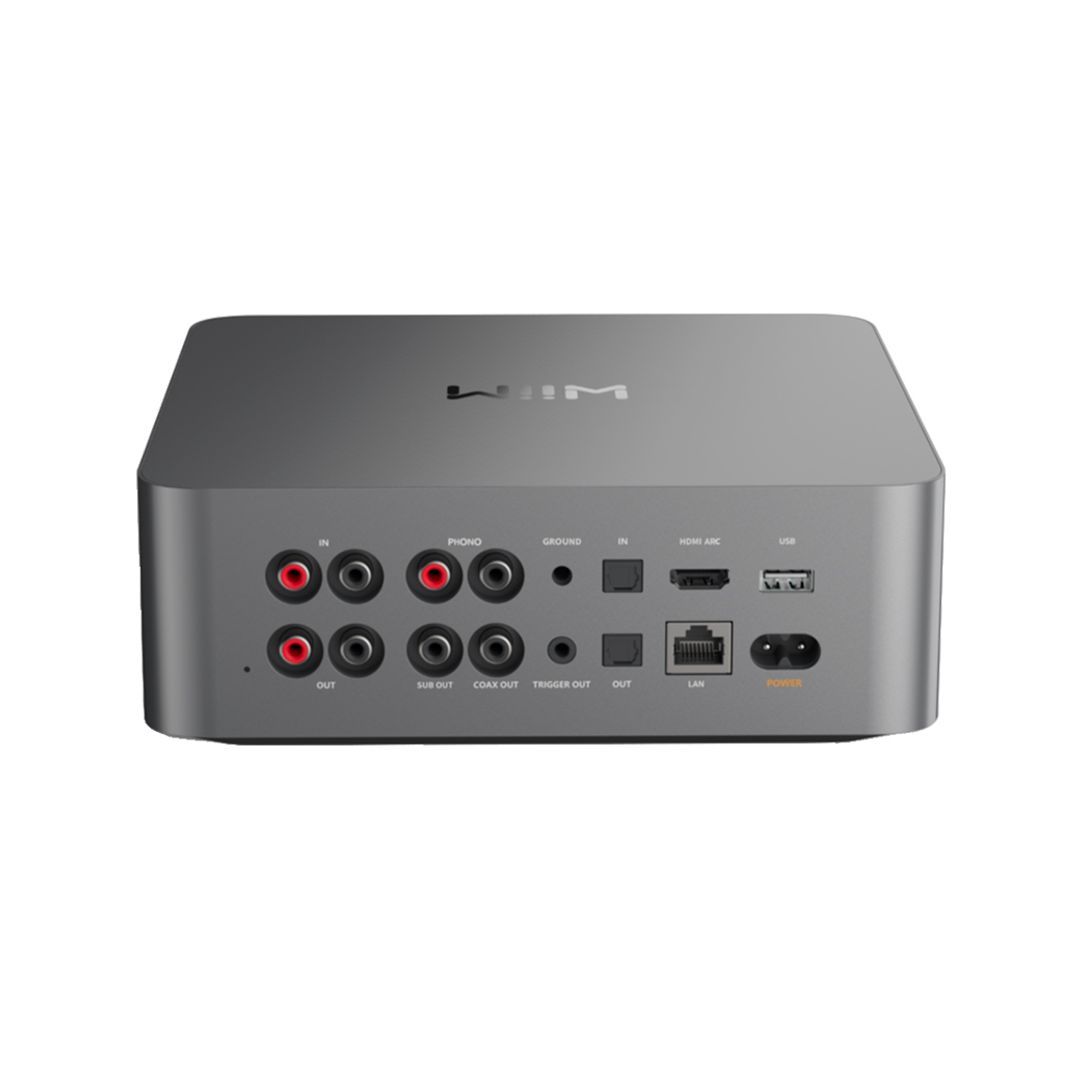

Inputs: Optical (1), RCA (1), Phono MM (1), USB (1), HDMI ARC (1)
Outputs: Optical (1), Coaxial (1), RCA (1), Subwoofer (1), Trigger (1)

• Wi-Fi 6E (2.4 / 5 / 6 GHz)
• Bluetooth 5.3 (receiver + transmitter support)
• Ethernet: 10/100 Mbps
• DLNA: Yes

Streaming: Spotify Connect, TIDAL Connect, Chromecast Audio, Alexa built-in, DLNA, Roon, Squeezelite
Voice Remote: Included

• Dimensions (211 mm x 200 mm x 72 mm)
• Weight: 1.42 kg
