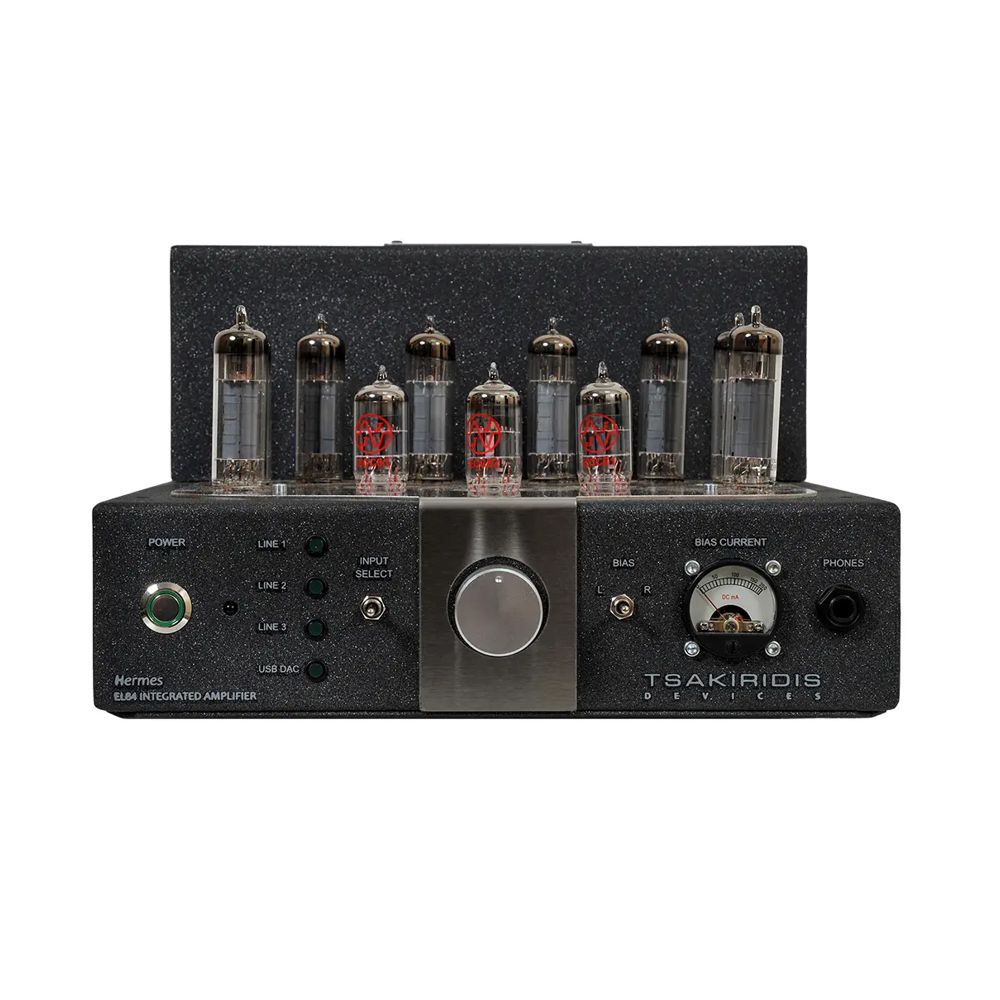

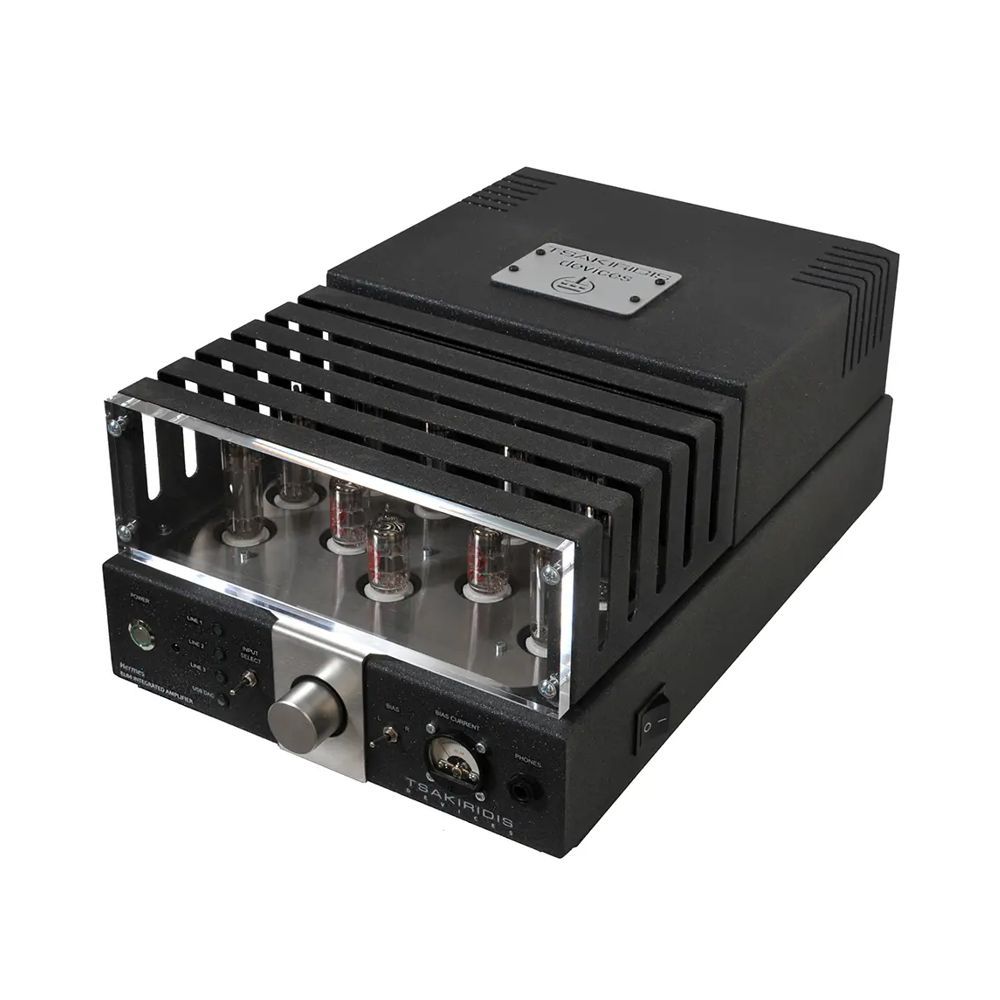

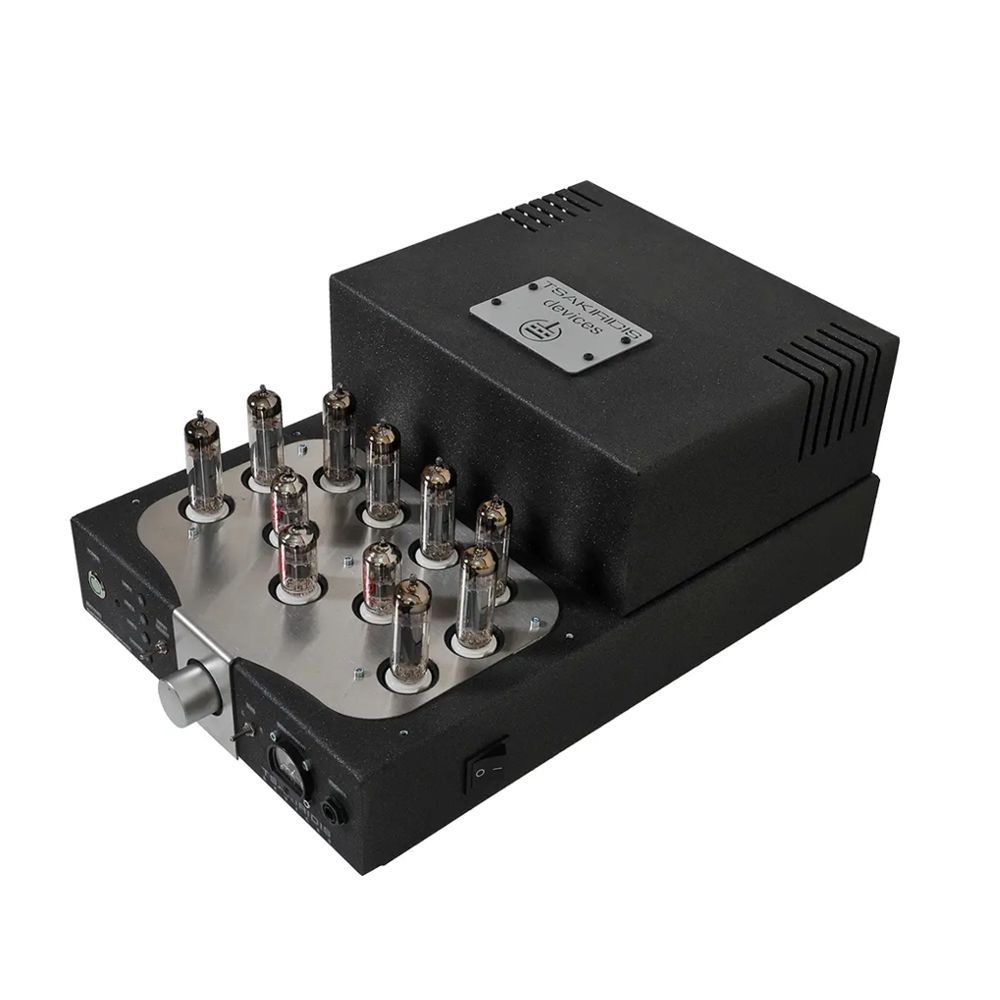

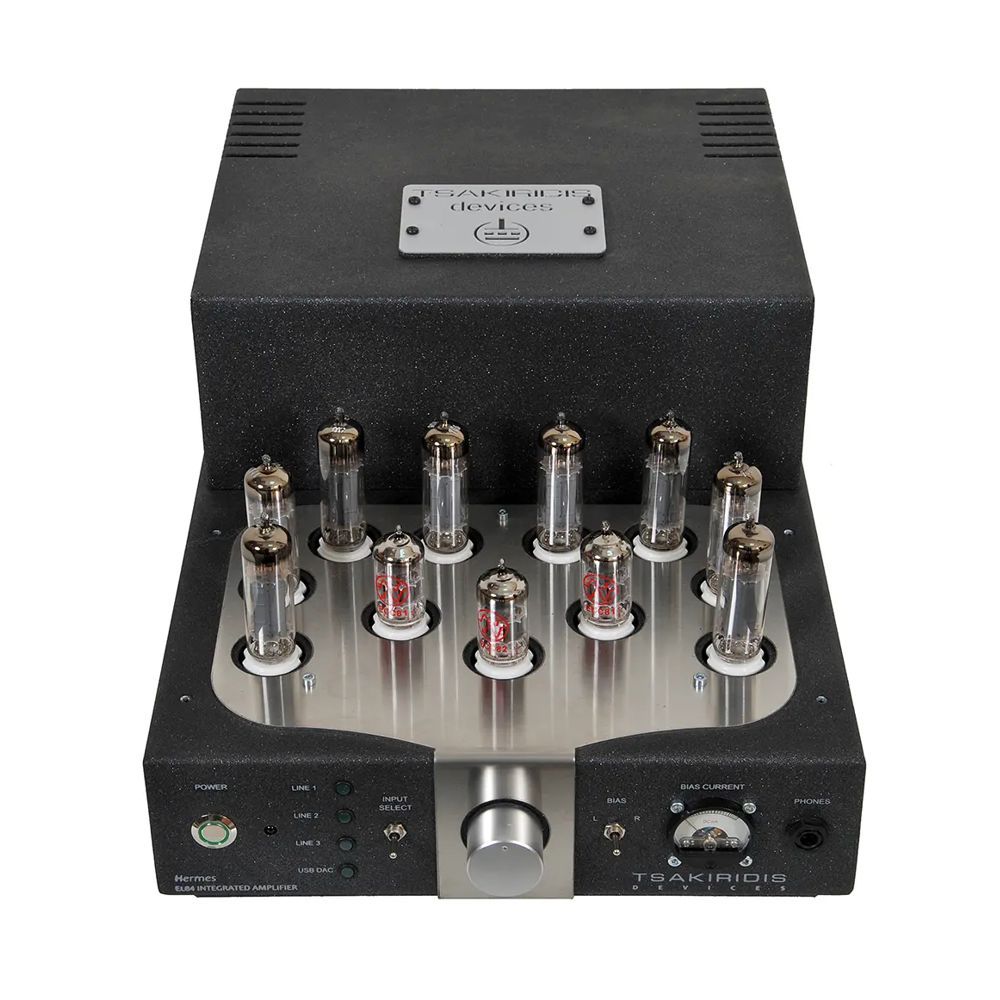

Hermes amplifier is an Integrated amplifier with 3 inputs.

It’s design is a double push-pull configuration implementing 4 EL84 power tubes per channel in class AB1 operation self-biasing and dual-mono power supply.

All electronic components are through hole type soldered by hand.

Hermes amplifier utilizes 8 layer handmade output transformers for superb sound quality.

Hermes uses the EL84 tube which is widely acknowledged for its full and high quality sound. Arranged in a double push-pull configuration to obtain enough power to drive a wide range of loudspeakers. The self biasing circuit is a nice convenience for the user.

Gold plated RCA connectors are implemented for the signal inputs/output and high quality binding posts for the loudspeakers. For the volume control the classic blue Alps is used.

An elegant remote control in aluminum case offers you control over all the functions of Hermes integrated amplifier. Volume control, input selection and mute.

Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.

Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

Inputs: 3 line inputs

Input selection: High grade signal relays

Input/Output connectors: RCA gold plated

Speaker connectors: Ultimax

Remote control: Yes

Volume control: Blue Alps

Power supply capacitors: United Chemicon 105oC

Signal capacitors: Non inductive polypropylene film capacitors

Power resistors: Carbon film 5% tolerance

Low power resistors: Metal film 1% tolerance

Power transformer: Handmade 250W

Output transformer: Handmade 8 layer windings

Driving stage tubes: 1x12AU7 and 2x12AT7

Power tubes: 8xEL84

Output Power: 2x25W

Input impedance: 47 kOhm

Output impedance: 6 Ohm

Input sensitivity: 350mV

Signal to Noise Ratio (SNR): 84db

Channel separation: 67db

Rise time: 6us @ 10kHz

Harmonic distortion: 10W @ 1kHz 0.48%

Frequency response: -3db 10Hz-47000Hz

Power supply energy: 80Joule

Power consumption: 90W

Weight: 14kgr

Dimensions (WxDxH): (29x44x22)cm
