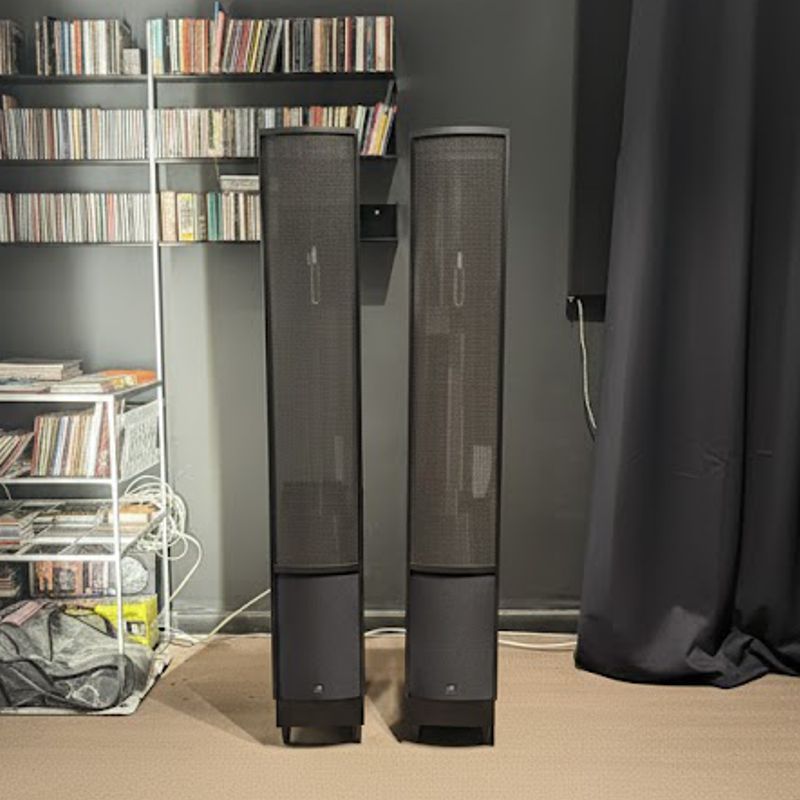

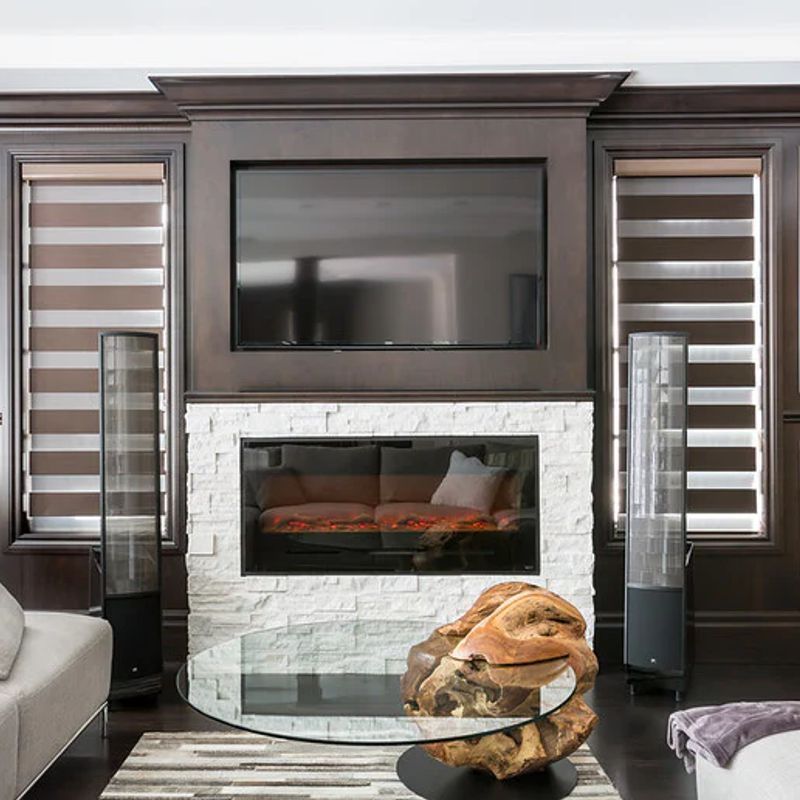

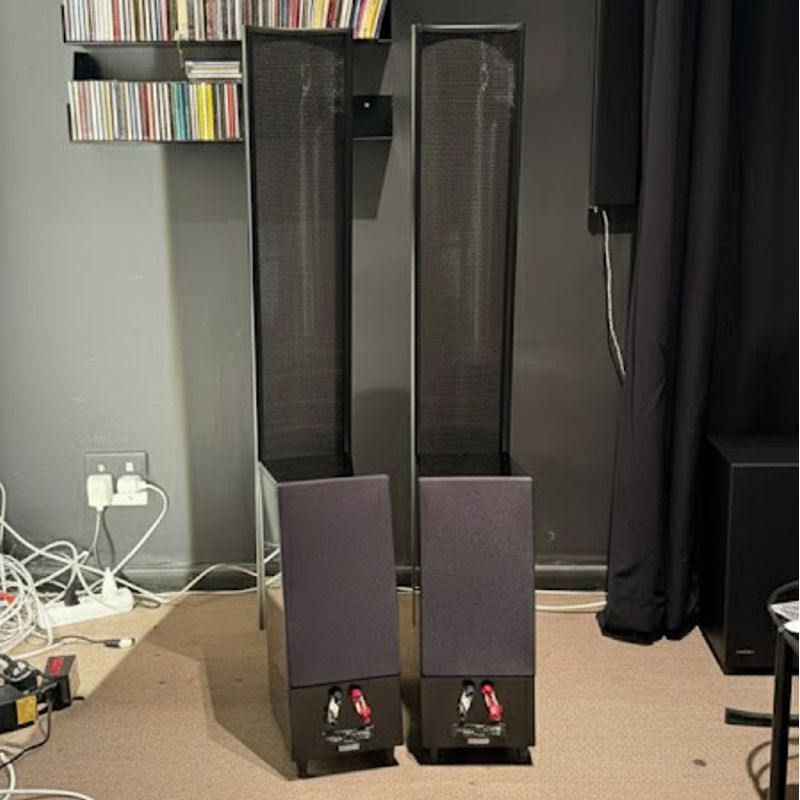

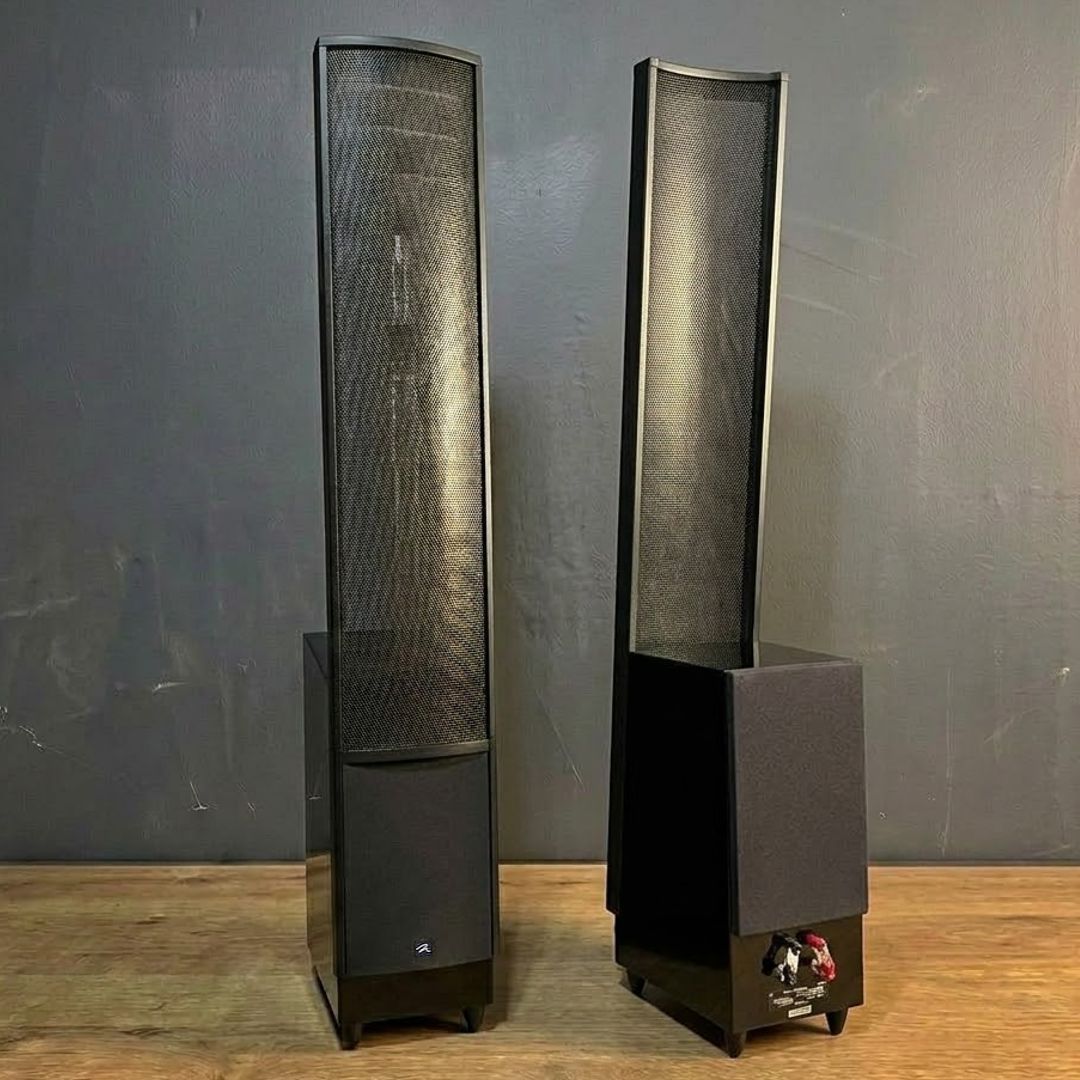

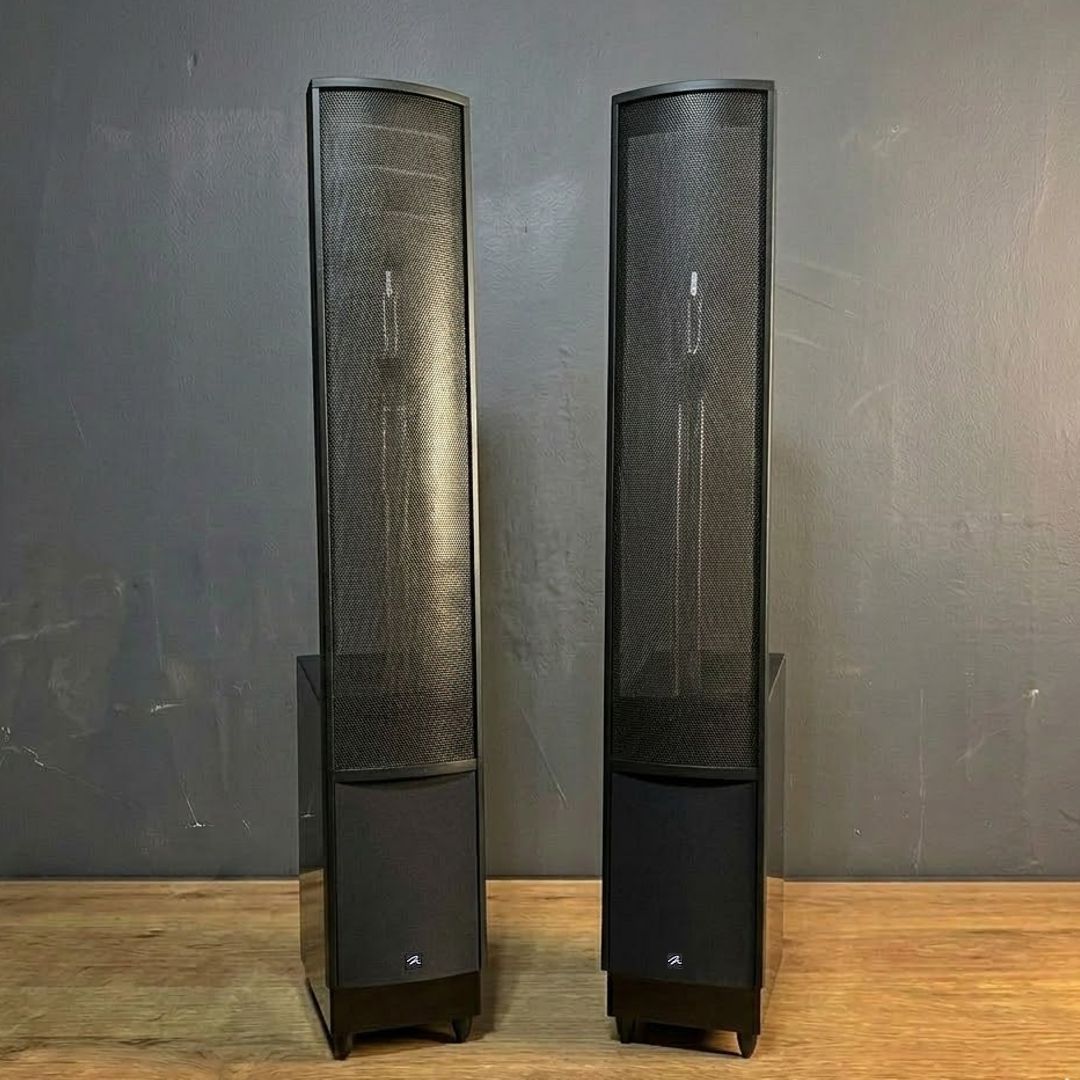

Martin Logan Electromotion ESLX
€4.018
In stock
Product Details
Brand: Martin Logan
Premium Connections, Solid Adjustable Footing
Custom 5-way bi-wire binding posts allow for secure wire connections. The EM-ESL X is supplied with sturdy, 3/8-16 ETC™ spikes, which can be used to fine tune vertical wave launch, enhance stability on thick carpets, and create tighter coupling between speaker and floor to provide a tighter and detailed bass performance. Each spike is conveniently covered by removable rubber end caps if you prefer not to use spikes.
Specifications
|
Frequency Response |
41–22,000 Hz ±3dB |
|
Recommended Amplifier Power |
20—400 watts per channel |
|
Horizontal Dispersion |
30° |
|
Vertical Dispersion |
40" (101.6cm) line source |
|
Sensitivity |
91 dB/2.83 volts/meter |
|
Impedance |
6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Crossover Frequency |
400Hz |
|
High Frequency Transducer |
XStat™ CLS™ electrostaic transducer » Panel Dimensions: 40" x 8.6" (102 x 22cm) » Radiating Area: 344 in² (2,244 cm² ) |
|
Low Frequency Transducer |
Two 8” (20.3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex. |
|
Components |
Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors |
|
Inputs |
Custom 5-way bi-wire tool-less binding posts |
|
Weight |
52 lbs. (23.6 kg) |
|
Dimensions |
59.2" x 9.4" x 20.7 " (150.3cm x 23.8cm x 52.6cm) |
