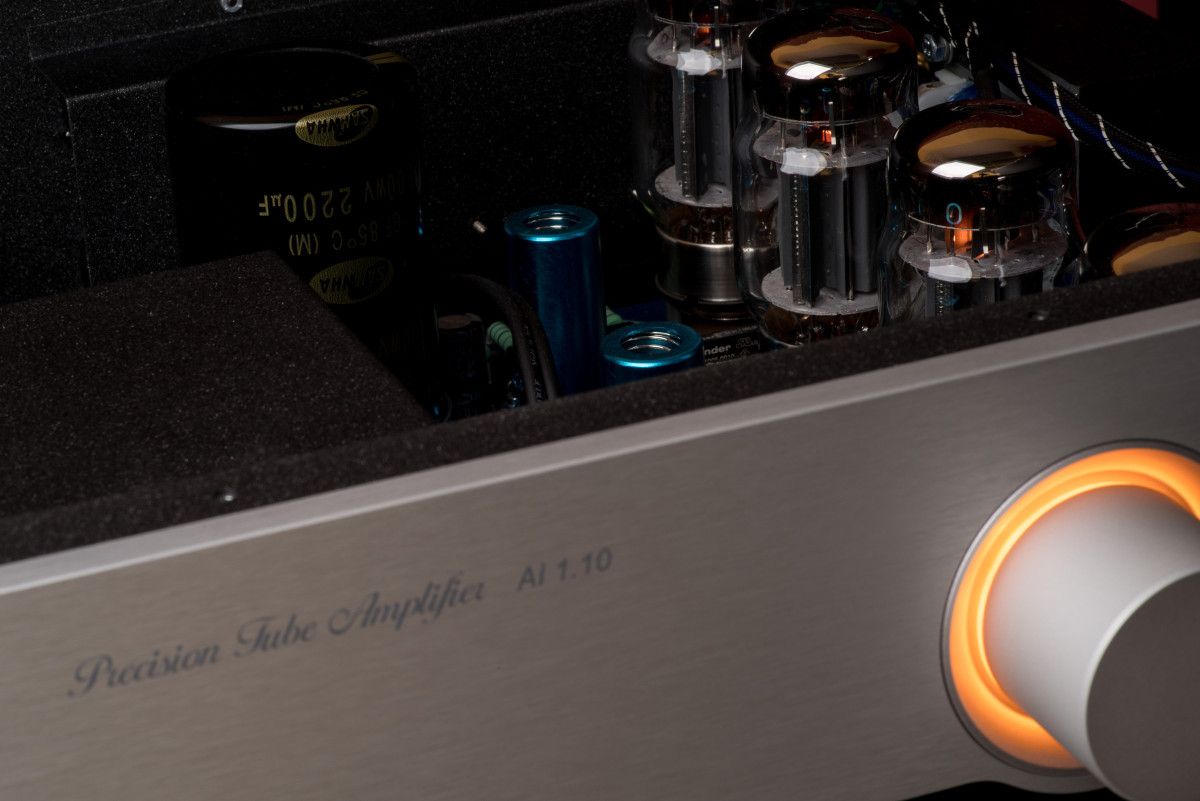

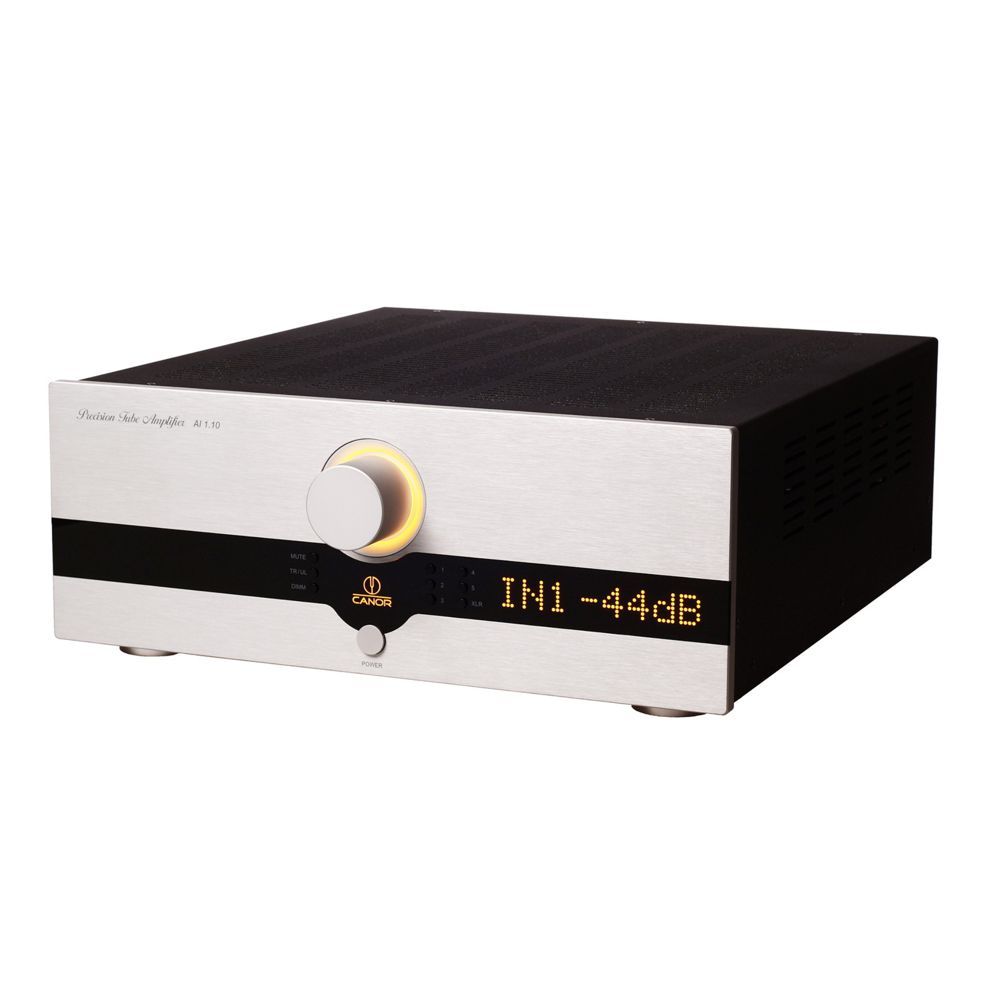

CANOR AI 1.10 is an integrated tube amplifier with a completely new topology, equipped with high-power KT88 tubes.

The aim of the development was to combine the best sonic characteristics of previous models. The amplifier operates in pure class A with an auto-bias function and cathode feedback.

PRODUCT FEATURES

• Integrated tube amplifier in class A with an output power of 2 x 40 W
• High-power KT88 tubes with auto-bias and cathode feedback
• Instant switching between triode and ultra-linear mode
• PCBs manufactured with our premium CMT™ technology
• Perfect channel separation thanks to relay attenuators / separate modules for each channel / 1 dB stepped gain control with a maximum attenuation of 63 dB
• Independently powered control section
• High-capacity filter capacitors for tight, controlled bass
• Only high-quality polypropylene capacitors used in the signal path
• Carefully selected and matched tubes with above-average parameters
• Synchronous control capability for using two amplifiers in monoblock mode without the need for an additional preamplifier, thanks to the Master/Slave mode with output power of 80 W per channel

TECHNICAL SPECIFICATIONS

Stereo Output Power

• 2 x 40 W / 4, 8 Ω – ultra-linear mode
• 2 x 20 W / 4, 8 Ω – triode mode

Monoblock Output Power

• 1 x 80 W / 8 Ω – ultra-linear mode
• 1 x 40 W / 8 Ω – triode mode

Gain

• 30 dB (at 8 Ω)
• 28 dB (at 4 Ω)

Input Sensitivity: 500 mV
Frequency Range: 10 – 50,000 Hz -0.5 dB / 5 W
Input Impedance: 30 kΩ

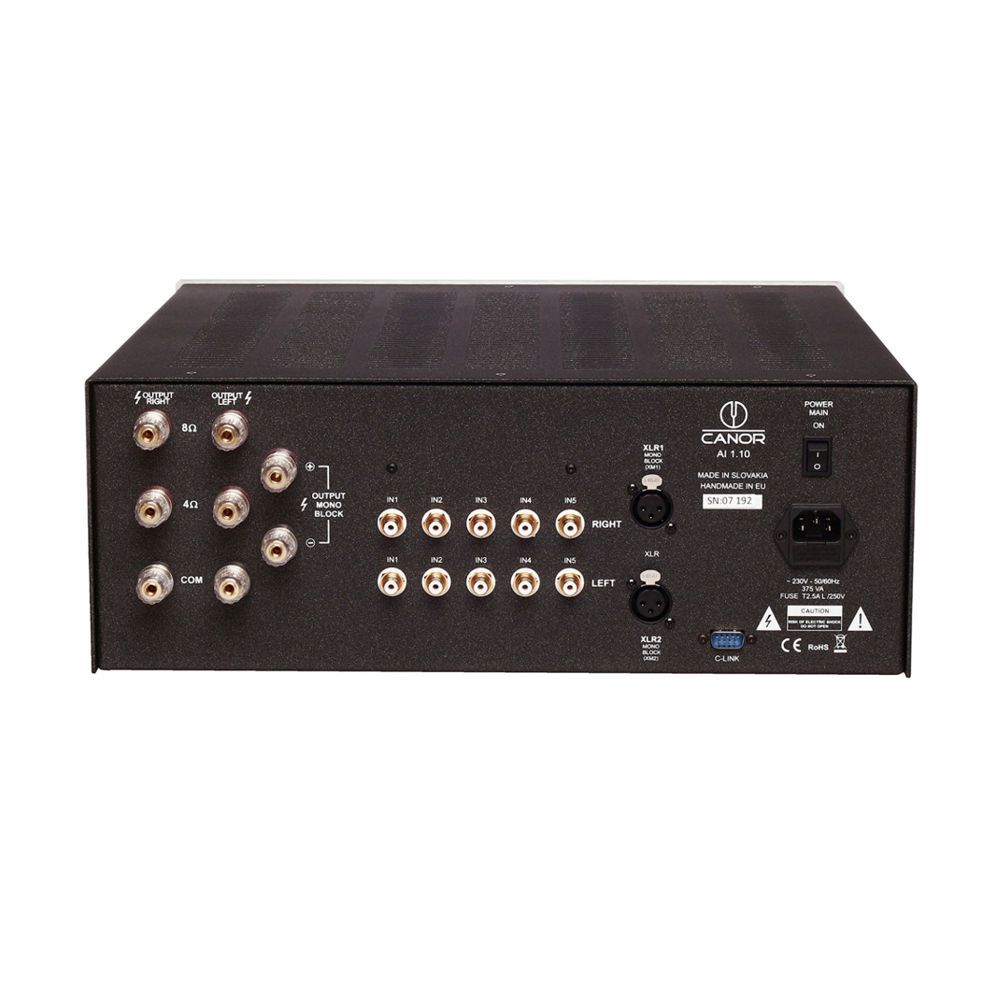

Inputs: 5 x RCA, 2 x XLR (XLR active only in monoblock mode)
Total Harmonic Distortion: < 0.05% / 1 kHz, 5 W
Signal-to-Noise Ratio: > 95 dB
Signal-to-Noise Ratio in Monoblock Mode: > 100 dB
Filtering Capacity: 2200 μF / 500V
Damping Factor on 4 Ω Load: 9
Damping Factor on 8 Ω Load: 10.5

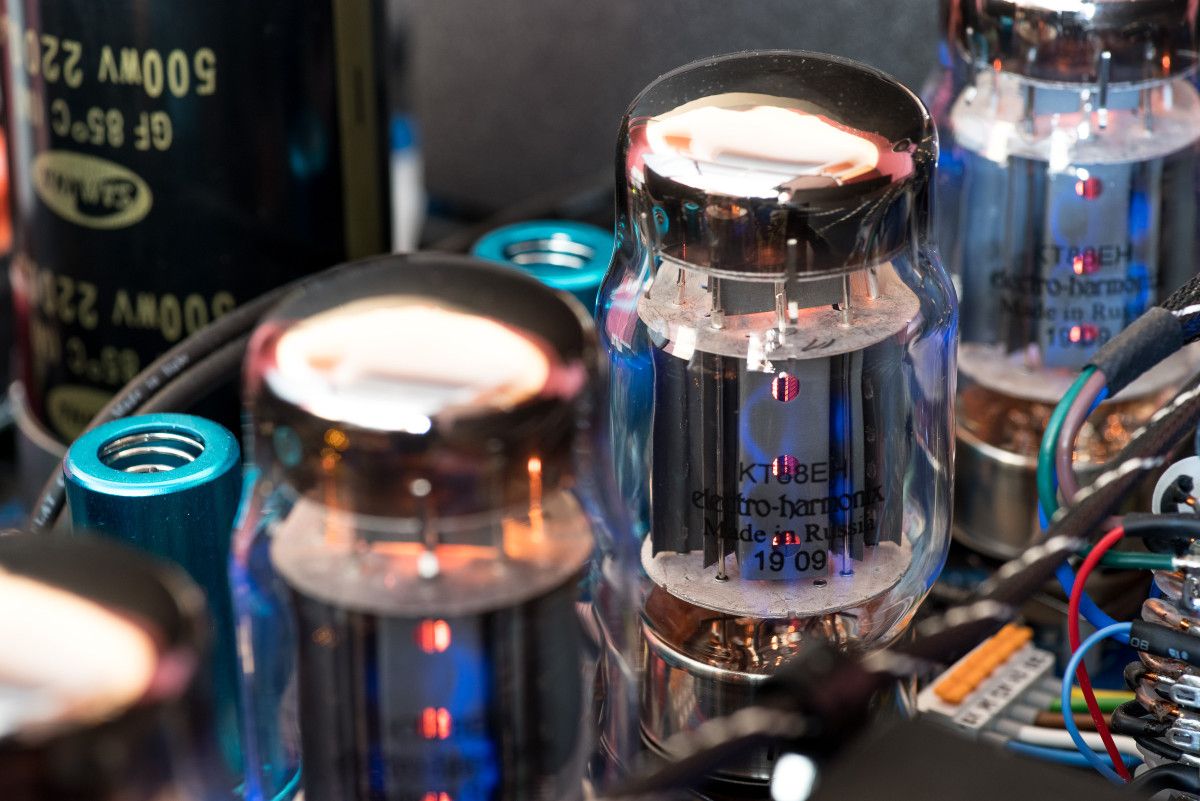

Tubes:

• 4 x KT88
• 1 x 12AX7
• 2 x 12AT7

Power Supply: 230 V / 50 Hz / 375 VA
Dimensions (W x H x D): 435 x 170 x 485 mm
Weight (net): 26 kg
