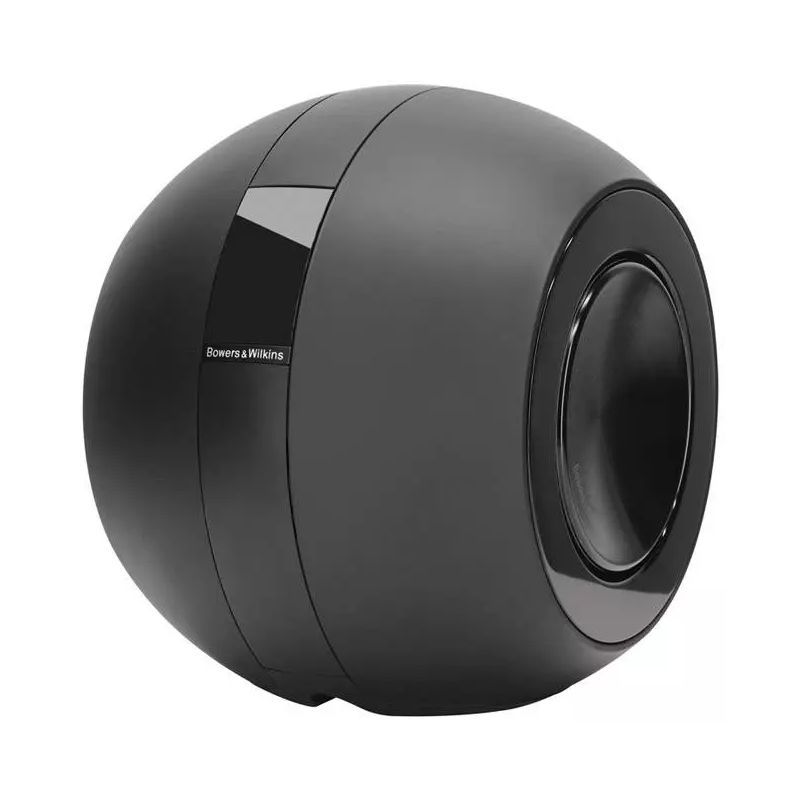

Bowers & Wilkins PV1D – Active Subwoofer

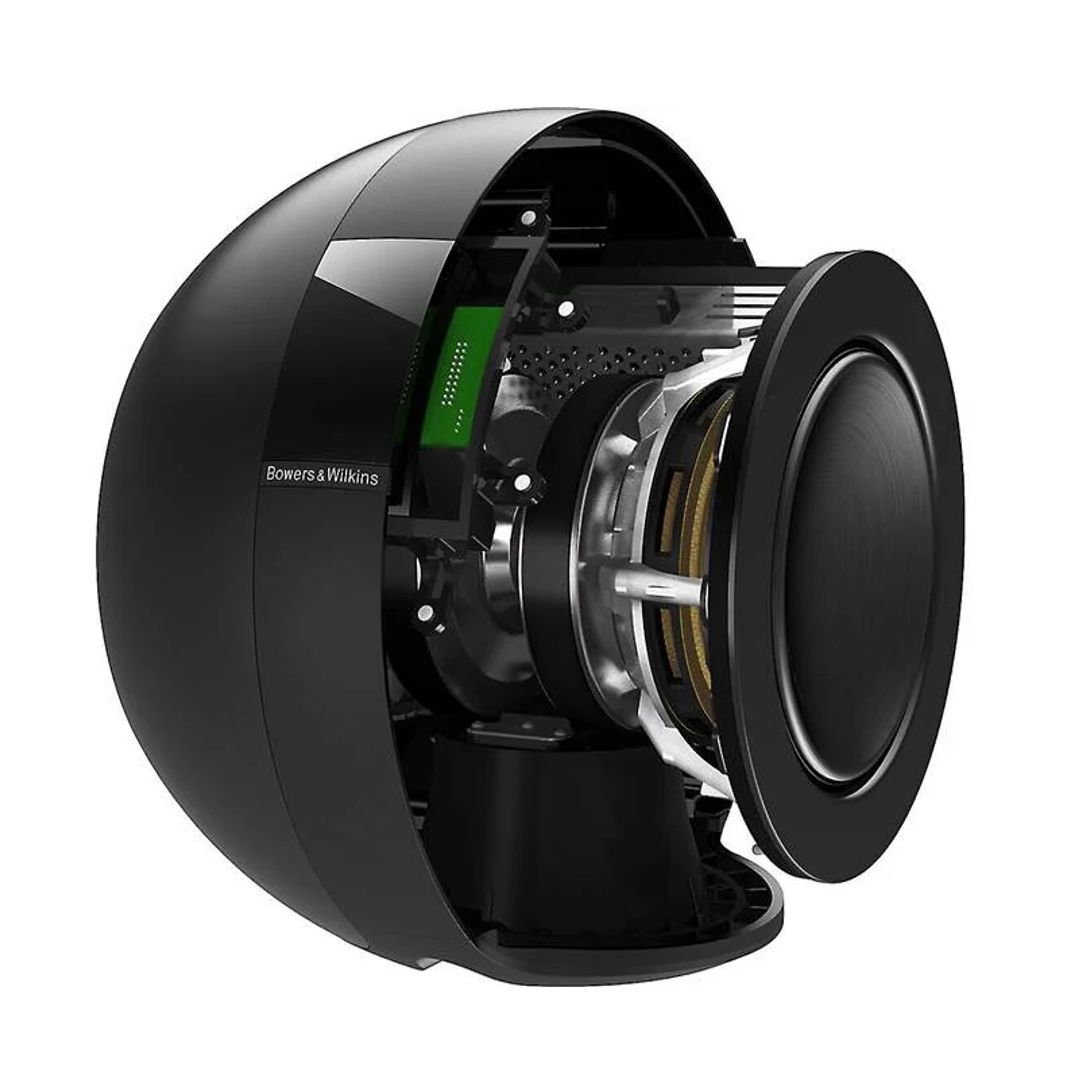

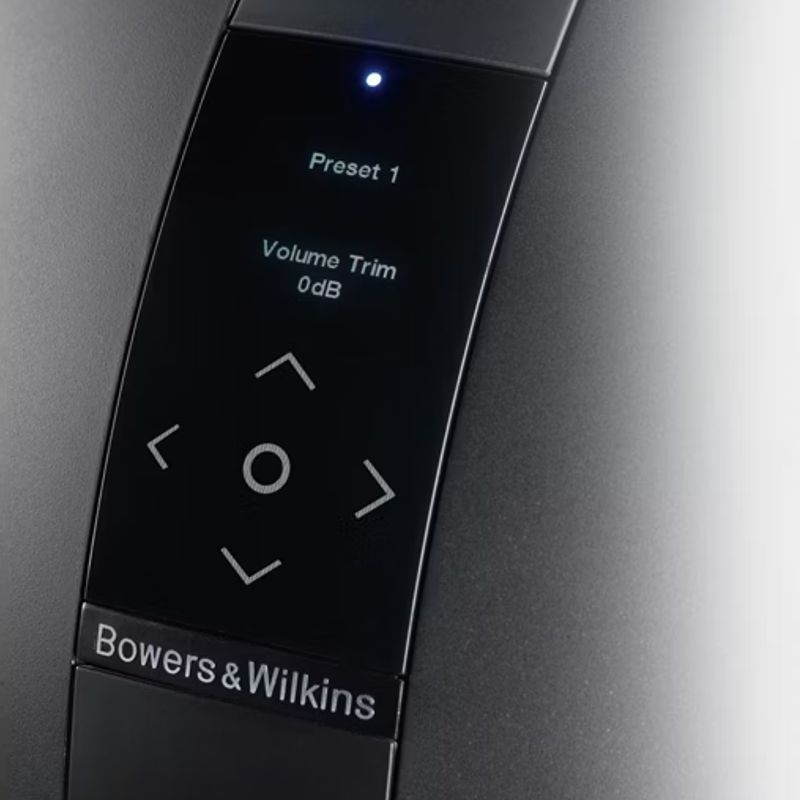

The B&W PV1D is a premium active subwoofer engineered to deliver deep, tight, and accurate bass from a compact, stylish enclosure. Its spherical, pressure-vessel design minimizes cabinet resonance, while dual opposed 20cm drivers provide fast, dynamic response. Features include digital DSP, OLED display, and advanced control via SubApp software, making it perfect for Hi-Fi or Home Cinema setups.

🔧

Technical Specifications – Bowers & Wilkins PV1D

• Technical Features:
  – Paper-Aramid Fibre/aluminium composite diaphragm drivers
  – Balanced drive
  – Digital Signal Processing (DSP)
  – 400W Class-D amplifier
• Description:
  Active, balanced-drive closed-box subwoofer system
• Drive Units:
  2 × 200 mm (8") Paper-Aramid Fibre/aluminium cone, long-throw
• Frequency Range (-6dB):
  6.5 Hz – 570 Hz
• Frequency Response (±3dB):
  64 Hz – 23 kHz on reference axis
• Amplifier:
  Power output: 400 W
  Rated power consumption: 150 W
  Standby power consumption: <1 W
  Input impedance: 100 kΩ
  Signal-to-noise ratio: >100 dB
• Functions:
  – 5 user presets
  – Input sensitivity (analogue)
  – Gain control (digital)
  – Adjustable low-pass filter: frequency, slope, phase
  – Auto on/standby
  – 12V trigger (on/standby)
  – 12V trigger preset switching
  – RS-232 automation control
• Inputs:
  – Stereo line in (2 × RCA/Phono)
  – Speaker-level in (5 m cable supplied)
• Dimensions:
  Height: 342 mm (13.5”)
  Width: 270 mm (10.6”)
  Depth: 358 mm (14.1”)
• Net Weight:18.7 kg (41 lbs)
• Finish:Matte Black
